Summary

Using a FPGA to crack ARC4 encrypted ascii text

Key Takeaways

• Using multiple on-chip memories
• Correct read-enable interface
• Concurrent modules with synchronous memories

Project Components

Implemented Modules

• ARC4 State Initilization (to setup memory)
• Key-Scheduling Algorithm (KSA)
• ARC4 Pseudo-Random Generation Algorithm (PRGA)
• ARC4 Cracker (tocrack encrypted text)
• Concurrent ARC4 Cracker (using two modifier cracker modules)

HDL code can be provided upon request, due to course policies.

Simulation

• Full testbenchs for all modules using ModelSim Altera

Compilation

• Quartus Prime

Hardware

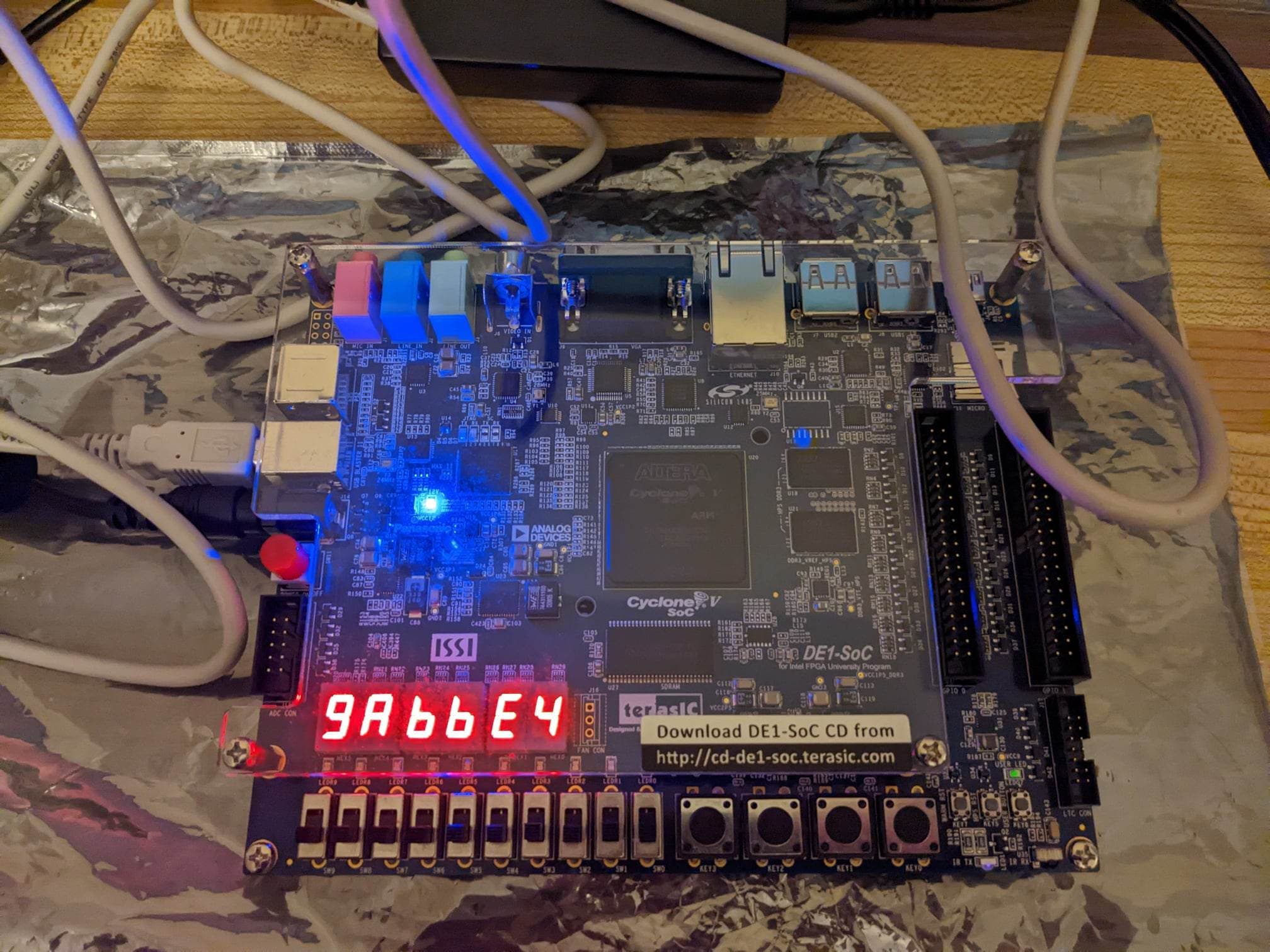

• De1-SoC FPGA

IP Modules

• RAM 1-PORT (generated with Quartus Prime)

Provided Information

• Pseudo-code for the algorithms

Results

Was able to crack the encrypted text in a sane amount of time. The cracked text can then be extracted from the memory using the Intel FPGA Monitor.
